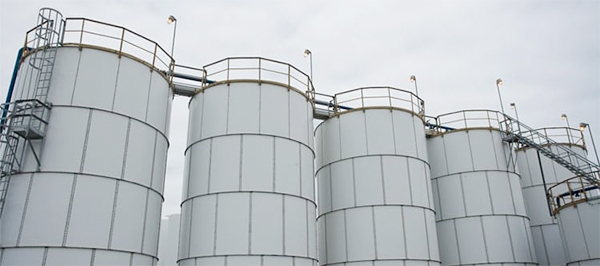

API 12B PETROLEUM STORAGE TANK

API 12B PETROLEUM STORAGE TANK

In 1916, CST ^TM took the leadership role in developing a solution for storing petroleum. The ultimate result was a bolted, chime panel tank design that API recognized 1929. Since then, CST has manufactured over 100,000 certified tanks and remains the preferred API-12B Certified tank manufacturer.

CST has inverted in continuously improving upon the non-standard aspects of the API-12B design by factory-coating the panels and developing additional gasket materials. By combining the basic API-12B design with other innovative design, CST can also provide expanded capacities and accommodate additional cover options.

World’s first Certified API-12B Monogrammed Tank Manufacturer
3 – 5 Week Lead Time From Order to Ship Date
100 to 10,000 Barrel Capacities with Larger Non-Monogrammed Capacities Available Upon Request
All crude oil storage tanks are completely coated inside and out with CST’s OptiBond™ coating process
Excellent corrosion resistance and immersion performance
Parts are packaged unassembled in compact kits, allowing economical shipping to any building site in the world
Custom designs available to meet specific needs

API-12B STORAGE TANK FEATURES

Built strictly to API-12B standards and audited by API inspectors to ensure compliance
Can be easily trucked to remote locations or disassembled, moved and reconstructed as necessary
Requires less site preparation and is 1/3 of the space needed vs. other temporary storage needs
EMR rate well below the industry average
Custom designs available to meet specific needs
Durable Trico Bond EP® epoxy coating extends tank life and limits operating maintenance costs
Tanks are manufactured in an ISO 9001:2015 Certified facility
Modular design makes it easy to increase capacity or make any repairs

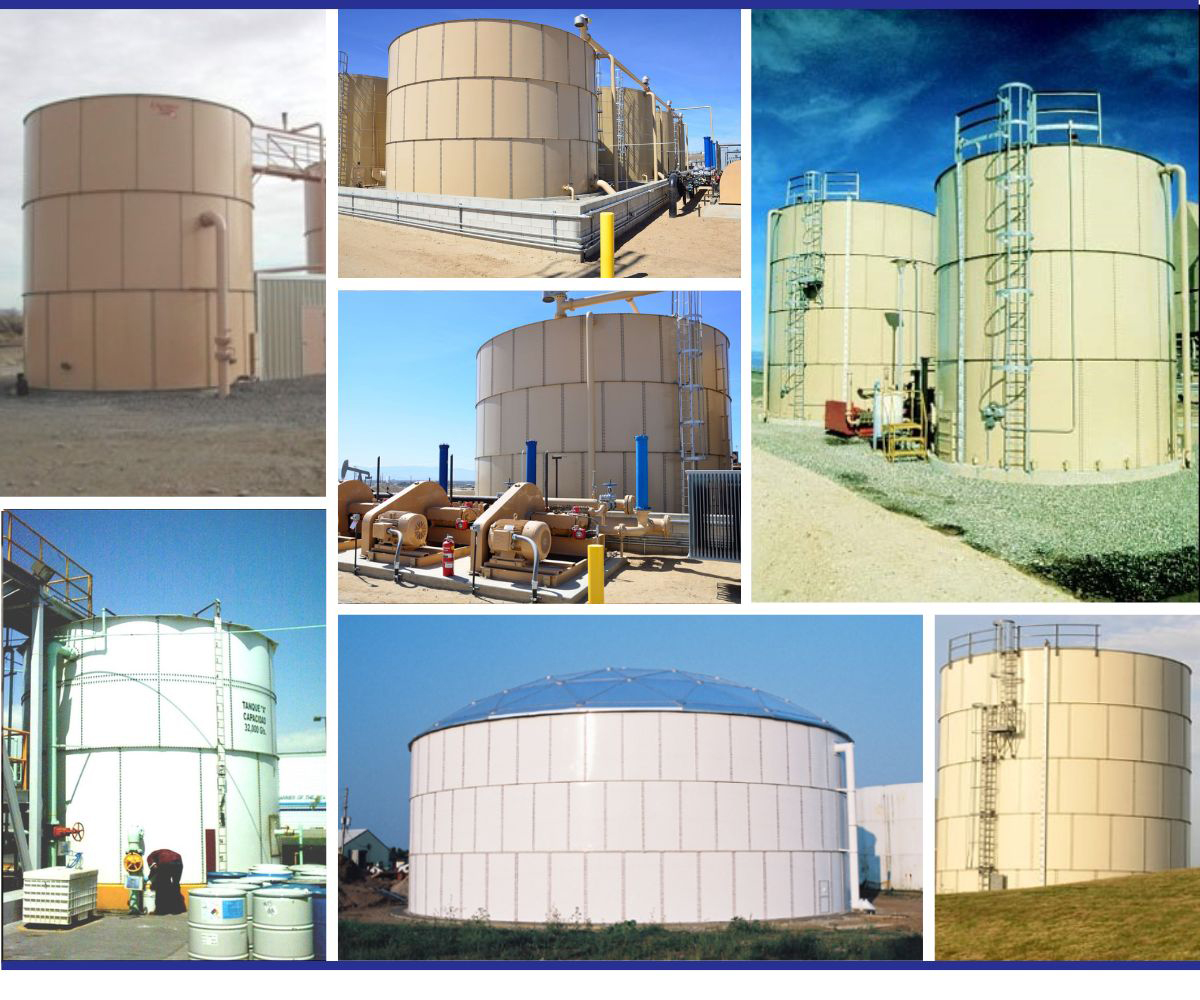

TANK APPLICATION

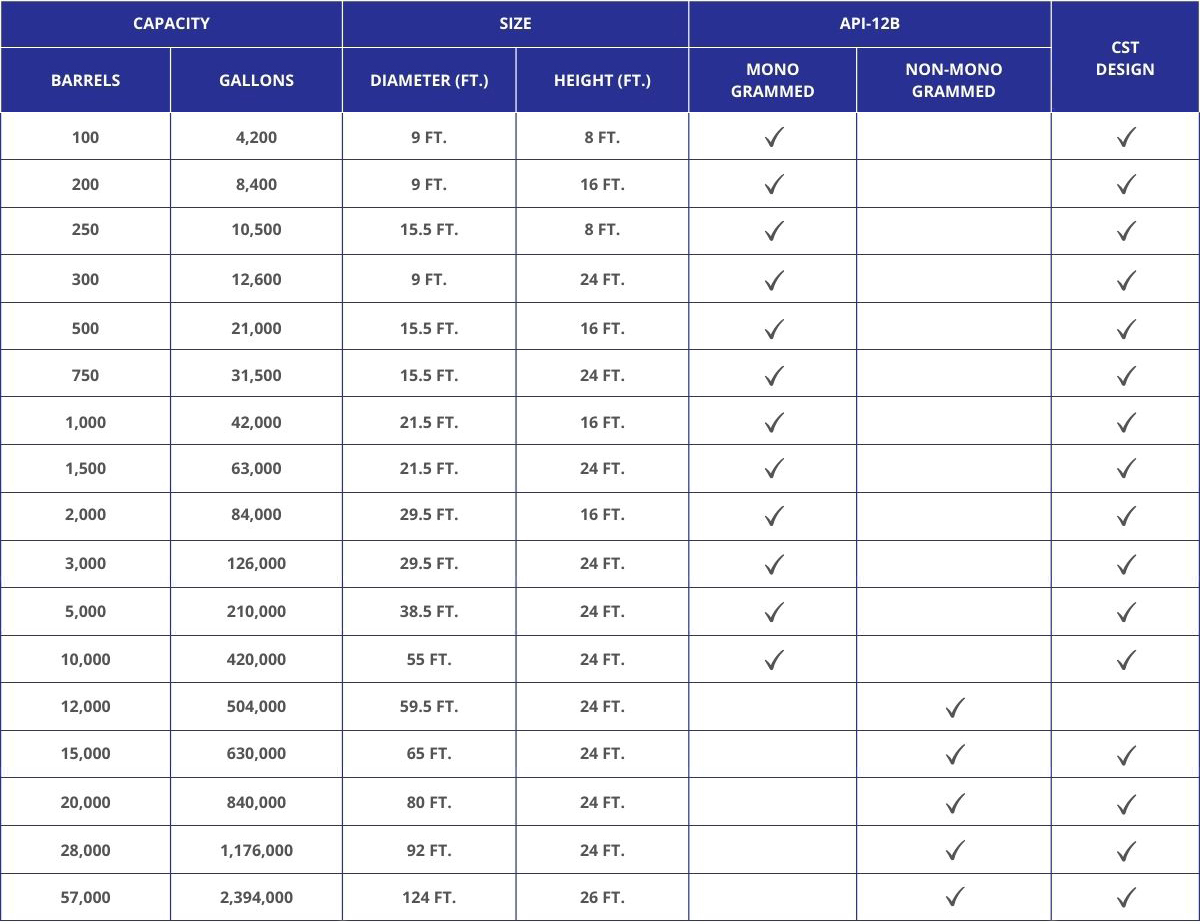

CAPACITY

CST designs larger non-monogrammed capacity tanks that are not included in the API-12B standard but use the same configuration and construction style as the monogrammed sizes.

Distributor of JAT Trading for CST API 12B Tanks
